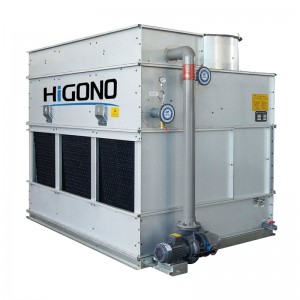

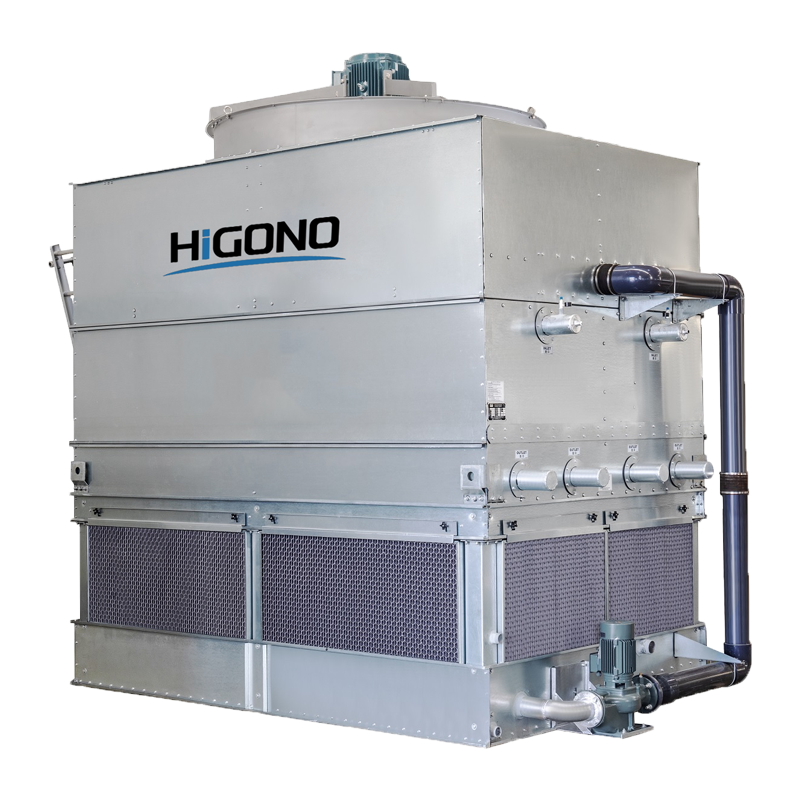

Downstream Closed Cooling Tower

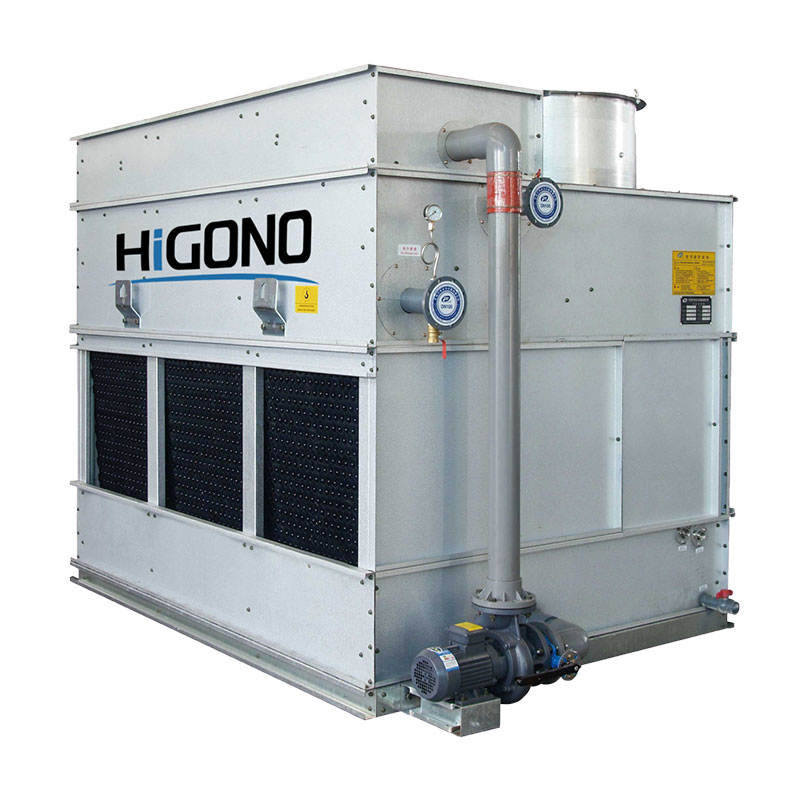

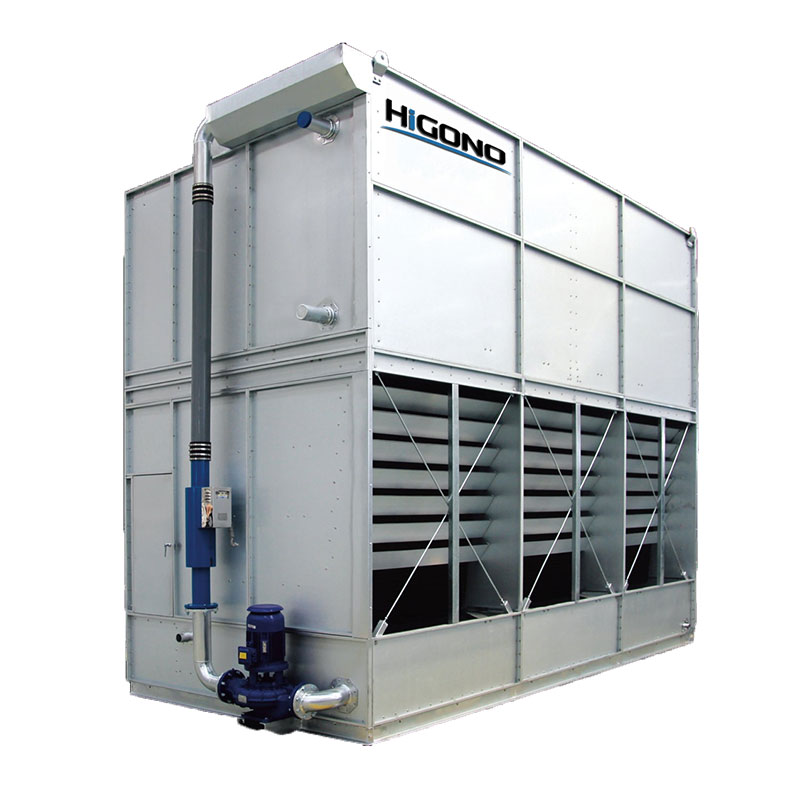

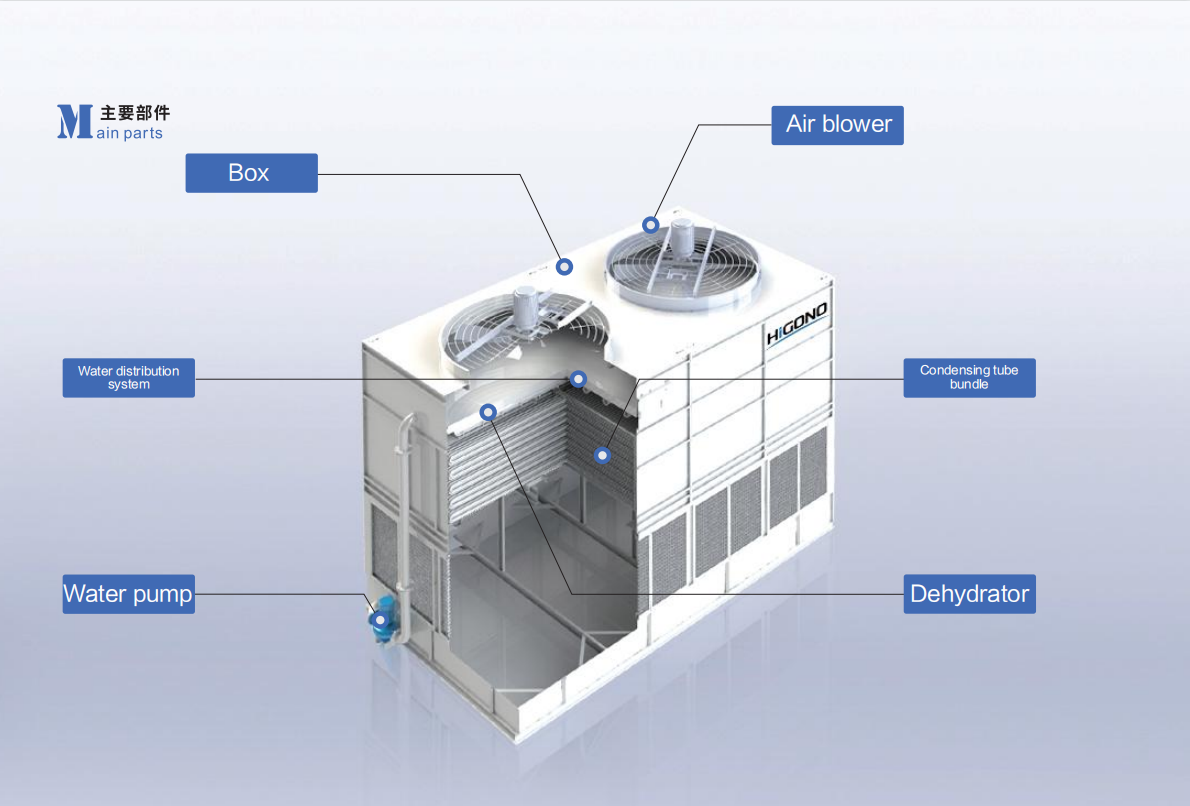

Main parts
Box
Aluminum plated zinc steel plate; It has the advantages of strong thermal resistance and excellent heat resistance.
Other options: galvanized plate G235, stainless steel 304, 316L, etc.; Special equipment size customization.
Air blower
Adopt direct axial fan, IP55 outdoor waterproof motor.
It has the advantages of low noise, high efficiency, few friction parts, no transmission loss and low fault.
Other options :IP56/IP66 protection grade; Explosion- proof, variable speed motor; Aluminum alloy, high strength fiber blade; Optional motor brand.
Water distribut system
The use of removable, large flow anti-blocking blue nozzle, to ensure that the water is continuously and evenly covered on the surface of the coil, improve the heat transfer effect.
Dehydrator
Corrosion resistant VPC material is used to effectively remove water droplets in saturated wet air, so that the water floating rate is less than 0.001%;
Detachable design is convenient for later cleaning and maintenance of the equipment.
Water pump
It adopts low-noise, fully enclosed, anti-splash and dustproof outdoor motor, equipped with stainless steel impeller and high quality mechanical seal.
It has the advantages of low energy consumption, excellent performance and long service life.
Other optional :IP56/66 protection grade; Explosion-proof motor; Optional motor brand.
PVCpacking
Specially designed PVC honeycomb packing has the advantages of good flame retardancy, small wind
resistance coefficient, anti-aging and so on.
Other options: CPVC, PP filler.
Tube bundle
The pipe adopts round steel pipe, and the tube bundle is tested for air tightness three times.
Integral hot-dip chain treatment improves corrosion resistance and prolonging service life.
Other optional: stainless steel 304, 316L, etc.
Special coil thickness, test pressure customization.
Peration principle

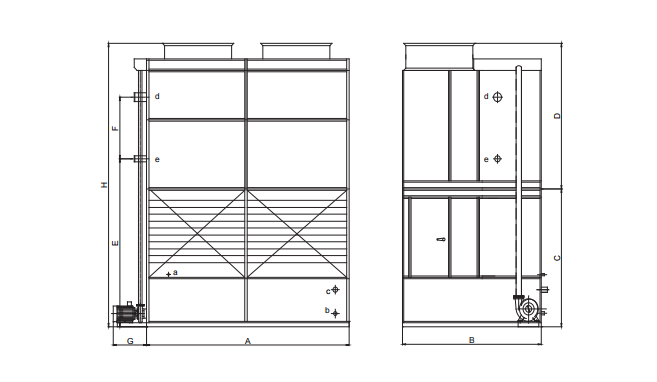

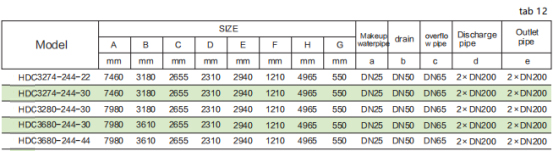

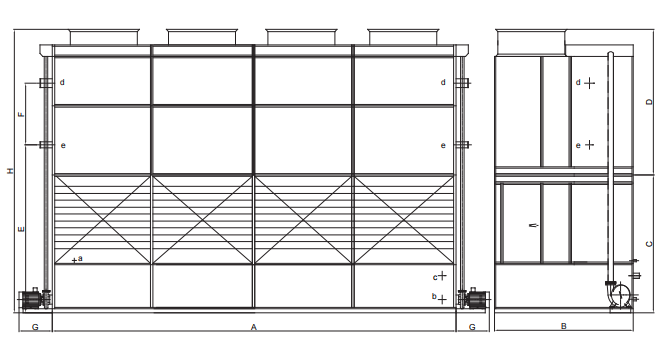

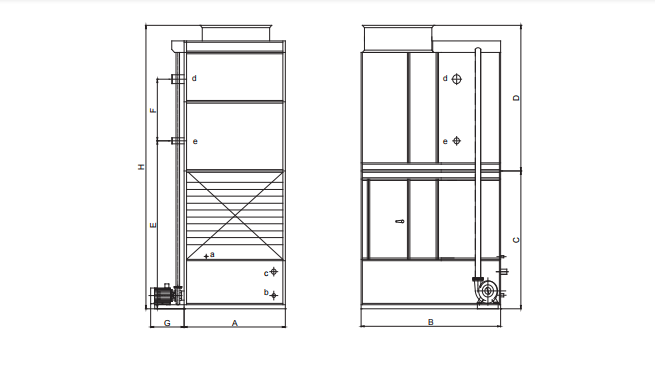

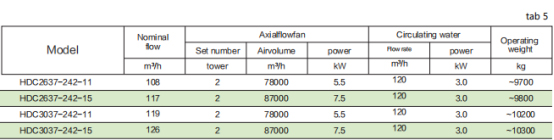

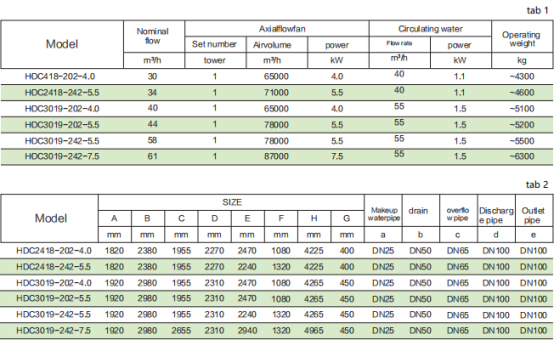

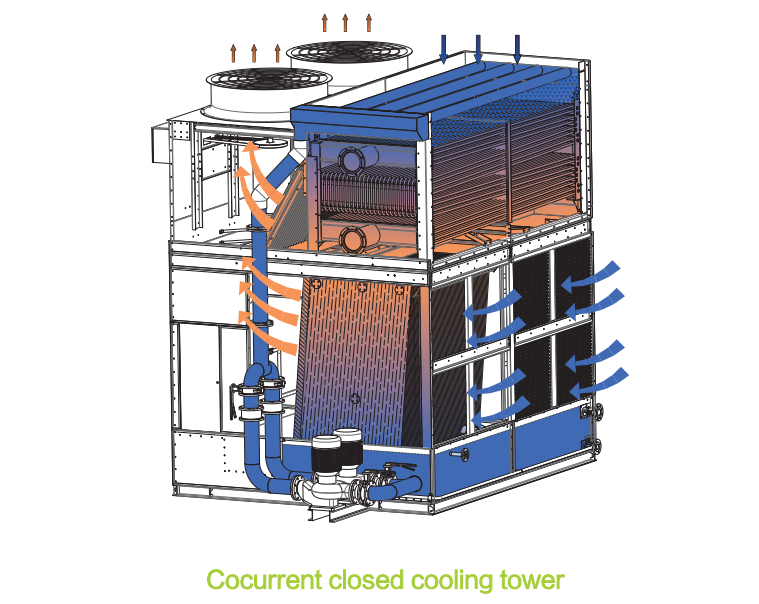

The closed cooling tower is composed of two boxes. The right side of the upper box is a heat exchange coil, the lower side of the coil is a heat exchange filler, and the left side is a fan inlet cavity and a maintenance passage. When running, The working fluid in the upper box flows in the coil, the outer wall of the coil is sprayed with water, the heat of the fluid is transferred to the outer water film through the tube wall, the water film continuously evaporates and takes away the heat under the action of the wind, the wind and the spray water flow in the same direction reduces the formation of scale and strengthens the heat transfer: the spray water after the heat transfer at the coil is transferred to the packing of the lower box to continue the evaporation heat transfer, so as to make itself The temperature is lower, thus forming a larger temperature difference with the working fluid in the next cycle, enhancing the heat transfer effect, and the air after heat transfer becomes saturated hot and humid air and is discharged into the atmosphere by the fan.

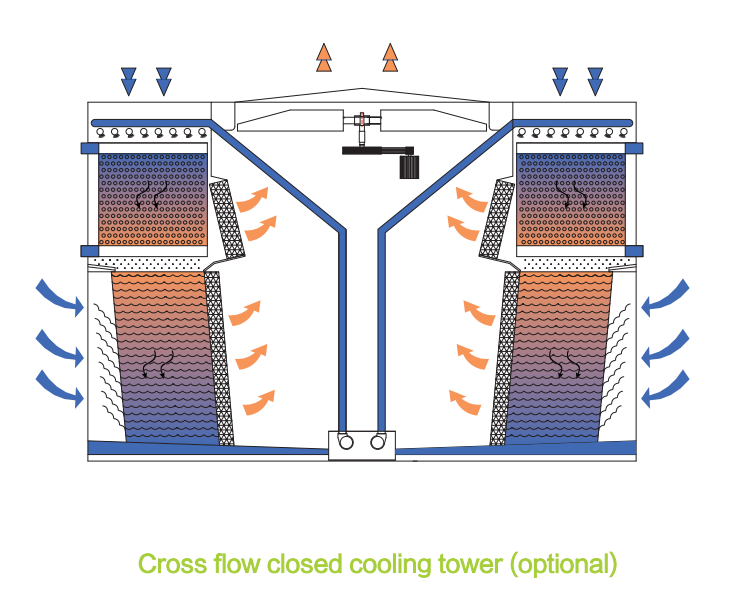

It is composed of two upper and lower boxes, and two heat exchange coils are arranged on the left and right sides of the upper box. The heat exchange filler is under the coil, and the air inlet cavity of the fan and the maintenance channel are in the middle. When running, the working fluid in the upper box flows in the coil, the outer wall of the coil is covered by spray water, and the heat of the fluid is transferred to the outer water film through the tube wall. The water film continuously evaporates and carries away the heat under the action of wind, and the wind and spray water flow in the same direction to reduce the formation of scale and strengthen the heat transfer; The spray water after heat transfer through the coil goes to the filler of the lower cell to continue evaporative heat transfer, making its own temperature lower, thus forming a larger temperature difference with the working fluid in the next cycle, enhancing the heat transfer effect. The air after heat transfer becomes saturated hot and humid air and is discharged into the atmosphere by the fan.

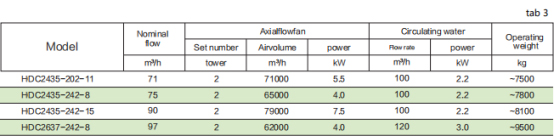

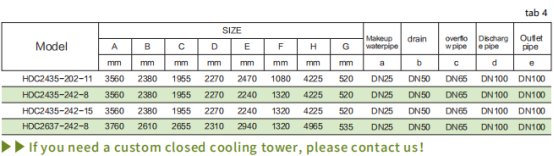

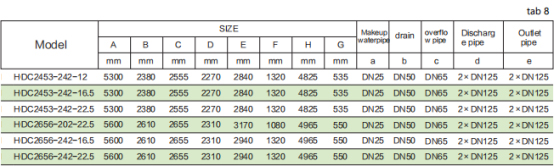

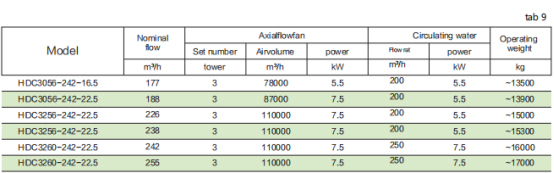

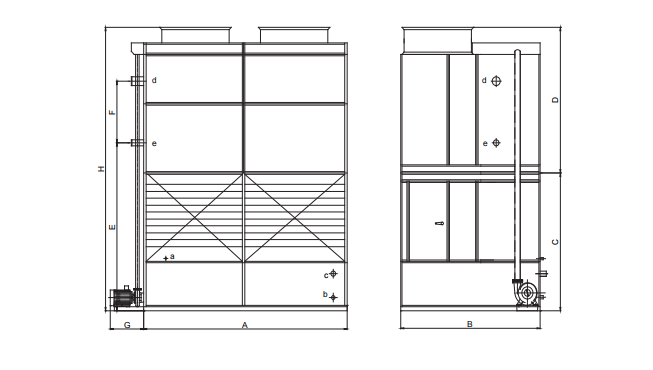

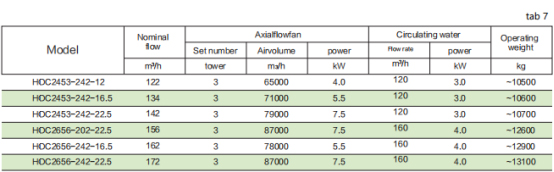

Area cooperation
Food processing
Polysilicion
Cold-china logistics
Industrial refrigeration
Cold storage
Fruit juice and dairy
Data center
Electric power generation
Chemical industry
Pharmaceutical
Competive adcantage
Modular design, easy to install and transport equipment on site.
Provide customized design services to meet the application requirements of different projects.
Equipped with the first evaporative cooling, closed tower test center in China, the data is real and reliable to ensure product performance.
Stainless steel and carbon steel materials are managed and processed in different areas to avoid rust infection during processing.
Independent raw material leveling, to ensure that the material is real and reliable, eliminate shoddy, to ensure product quality .
The plate is cut by laser, which is precise and beautiful, and reduces the error caused by manual operation.
Accessories are sandblasted to keep the inside of the equipment clean.
Three-dimensional warehouse, product parts classification is clear, reduce delivery errors.
Apply big data system to track and supervise production progress and refine production management.
